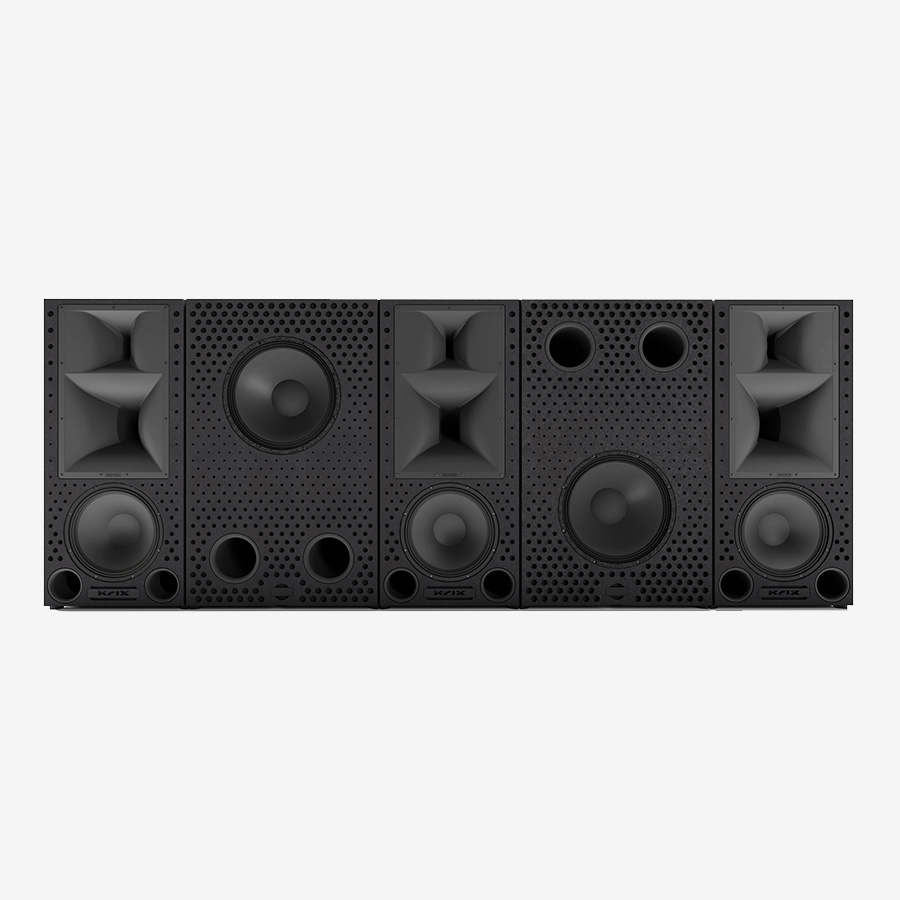

Krix MX-40 是澳洲凯瑞斯的旗舰幕后音障墙，属于私人影院系列。
The MX-40 is the flagship system of the Series MX range. Featuring a 3-way design, it is capable of immense sound pressure levels while maintaining the absolute highest level of soundtrack reproduction.
The MX-40 screen speaker system is the first in the Series MX range to incorporate a 3-way design – delivering an incredibly smooth, consistent and compelling experience that encompasses the true dynamic power and clarity of real cinema sound.

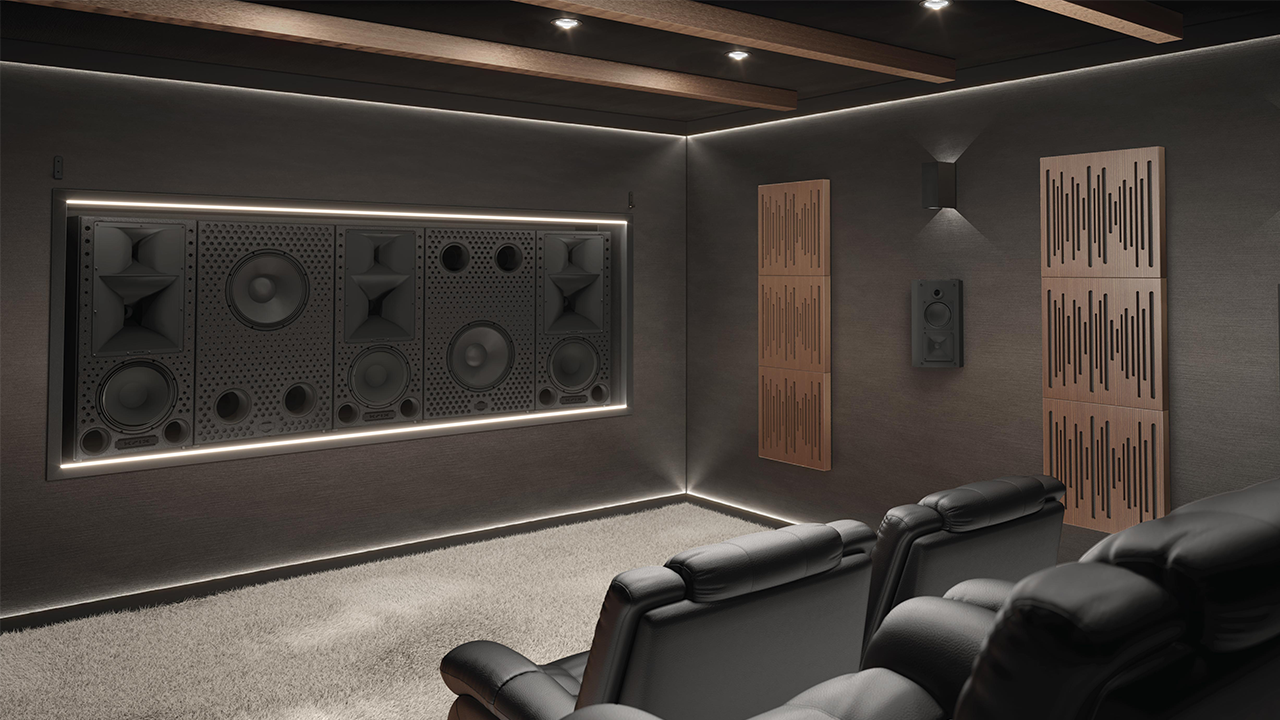

Much like the MX-30, the MX-40 is best suited to larger 家庭影院s that are five to fourteen metres in depth.
The new 3-way design features a dedicated high frequency compression driver and newly engineered 152mm midrange driver, both coupled to a brand new single-mould, dual-horn system that has been developed by Krix over three years.
资料来自 Krix 官网。澳洲设计制造。
品牌：Krix / 凯瑞斯 澳洲制造
型号：MX-40
系列：私人影院系列
SYSTEM RECOMMENDATIONS：Recommended room depth
5m – 14m：Minimum screen size 16:9
145″ (3210mm x 1806mm)：Minimum screen size 21:9
：LCR SPEAKER MODULES
频响：38Hz-16kHz in room response
承受功率：Low frequency element 100 – 700 Watts RMS recommended amplifier power
灵敏度：Low frequency element 98dB for 2.83 volts at 1 metre
阻抗：Low frequency element 8 Ohms
High frequency element 8 Ohms：Configuration
3-way Bi-amp：Crossover frequency
箱体形式：Bass reflex, front vented
低频单元：Single 380mm (15″) high stiffness paper cone driver with 75mm (3″) voice coil of optimal length for increased linear excursion, wound on high temperature apical former and powerful vented magnet assembly designed for low distortion
Mid frequency driver：Krix proprietary 90º x 40º short throw dual horn with 152 mm (6″) paper cone driver, ferrite magnet, 38 mm (1 ½”) voice coil and copper shorting ring
高频单元：Krix proprietary 90º x 40º short throw dual horn with 25mm (1′)’ throat, 35mm (1.4”) compression driver, ferrite magnet, coated titanium diaphragm and polyimide surround
接线端子：Gold plated spring terminals
尺寸：1220mm high x 550mm wide x 335mm deep (3165mm wide including subwoofer modules)
重量：65kg each
：SUBWOOFER MODULES
